Revolution 1774: Observation start 2017-01-24T08:11 = MJD 57777.342
Total Observation GTI = 56331 seconds
ISGRI

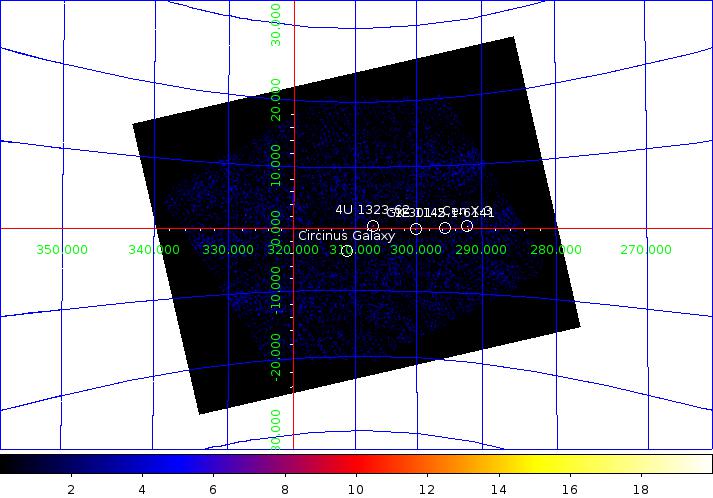

ISGRI significance mosaic images. Top: ISGRI 18-40 keV. Bottom: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA10.2
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 208 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 100 cps ) where available.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 301-2 186.680 -62.774 1.0 300.109 -0.038 6.2 0.20 31.6 0.8 0.17 4.8
Cen X-3 170.306 -60.609 1.5 292.082 +0.348 8.1 0.44 18.4 0.0 0.00 0.0
4U 1323-62 201.677 -62.157 1.9 307.038 +0.433 2.0 0.14 14.2 1.2 0.13 9.3
Circinus Galaxy 213.246 -65.333 2.0 311.310 -3.796 2.2 0.16 14.1 0.7 0.13 5.4
1E 1145.1-6141 176.811 -61.967 2.6 295.466 -0.029 2.9 0.28 10.2 1.6 0.24 6.6
H 1538-522 235.630 -52.357 2.8 327.453 +2.175 3.3 0.35 9.5 0.0 0.00 0.0
4U 1626-67 248.092 -67.454 3.0 321.800 -13.093 5.3 0.00 8.6 0.0 0.00 0.0
IGR J12415-5750 190.345 -57.887 3.4 301.591 +4.959 1.5 0.20 7.5 0.0 0.00 0.0
Cir X-1 230.153 -57.054 4.6 322.171 +0.137 1.1 0.20 5.4 0.0 0.00 0.0
JEM-X

JEM-X1 and JEM-X2 significance mosaic images in 3-10 keV energy band.
Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with j_ima_src_locator
in 3-10 keV energy band.
Source Name RA dec A(cps) sigma
==================== ============= ============= ============= =============
Cir X-1 2.3015248E+02 -5.7159340E+01 1.2095757E-02 5.0105381E+01
GX 301-2 1.8664345E+02 -6.2768311E+01 1.3425283E-03 1.7407255E+01
4U 1323-62 2.0166068E+02 -6.2138489E+01 4.0561453E-04 9.7368212E+00
